Hochiki’s patented Digital Communication Protocol (DCP), it allows for a very robust intelligent communication with other analog addressable products for fire alarm system.
Hochiki
Description
รายละเอียดผลิตภัณฑ์
- ผลิตภัณฑ์ชุดอุปกรณ์และระบบสัญญาณแจ้ง เหตุเพลิงไหม้ชั้นนําของญี่ปุ่น
- ก่อตั้งแบรนด์สินค้าขึ้นตั้งแต่ปี 1918
- ผลิตภัณฑ์ได้รับมาตรฐานสากล เช่น UL Listed, FM Approves, CSFM

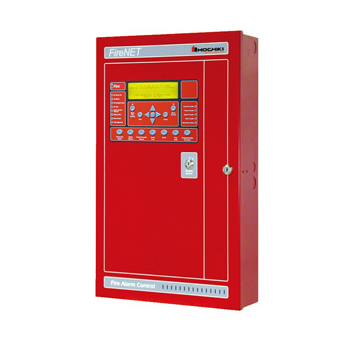

At the backbone of the FireNET™ Analog Addressable system is the FireNET™ control panel itself. Utilizing Hochiki’s patented Digital Communication Protocol (DCP), it allows for a very robust intelligent communication with other analog addressable products. An RS-485 bus provides communication to the panel network, while the RS-232 interface allows the convenience of programming via a PC. The panel will support up to 127 devices per loop (of any combination), which includes sensors and control modules. The Loop Explorer Windows® based software interface provides the installer with fingertip access to installation programming and diagnostic tools.
Summary Features
- DCP protocol for fast & robust communication
- Network Capability of up to 64 panels with 500 network wide software zones
- Fire Drill function and Walk Test function
- Powerful & versatile Cause & Effect programming
- Alternate build of the panel door is equipped with a Plexiglass window to meet the requirements of major cities including the city of Denver
