High Sensitive Smoke Detection System

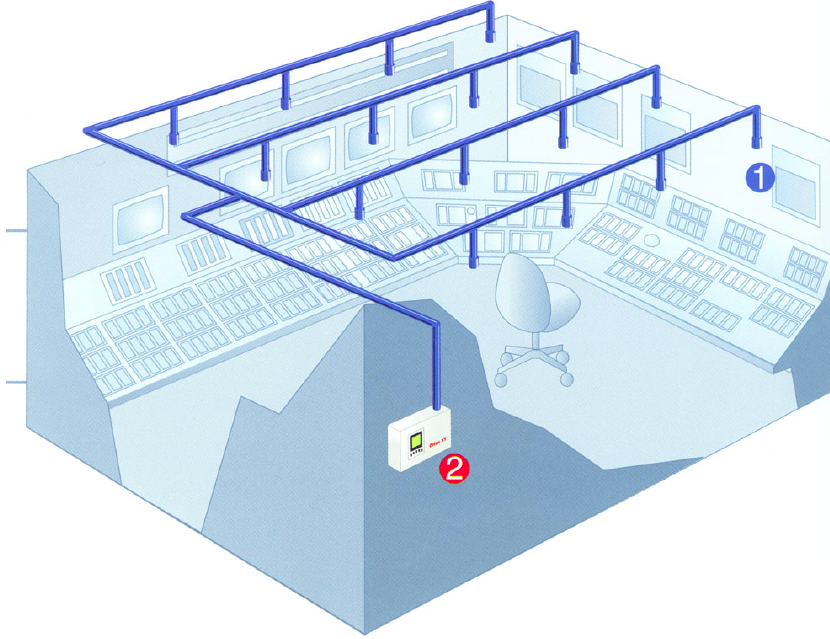

The Kidde ORION XT HSSD detects particles of combustion at levels of obscuration as low as 0.0015% per foot; thousand of times more sensitive than conventional smoke detectors. Laser optics, and Kidde’s particle counting technology provide for a stable, highly reliable incipient fire detector. An engineered & balanced air sampling network insures equal sensitivity throughout protected areas. The ORION XT is widely used for critical, high-asset equipment protection; process controls, robotics, MIS facilities, and automated conveyances.

Category:

Description

The Kidde ORION XT HSSD detects particles of combustion at levels of obscuration as low as 0.0015% per foot; thousand of times more sensitive than conventional smoke detectors. Laser optics, and Kidde’s particle counting technology provide for a stable, highly reliable incipient fire detector. An engineered & balanced air sampling network insures equal sensitivity throughout protected areas. The ORION XT is widely used for critical, high-asset equipment protection; process controls, robotics, MIS facilities, and automated conveyances.

Summary Features

  • Laser particle-counting technology
  • Uses particle size discrimination technology—no filter required
  • Full configuration using LaserNet™ software
  • History buffer stores up to 28 days of smoke history
Technical Property

Coverage Detect Up to 20,000 sq. ft. of coverage
Ultra Detector 0.00015%/ft. to 0.03%/ft. obscuration
Standard Detector 0.00075%/ft. to 0.03%/ft. obscuration
IIM to network Up to 127 detectors

  • Up to 20,000 sq. ft. of coverage
  • Ultra Detector: 0.00015%/ft. – 0.03%/ft.
  • Standard Detector: 0.00075%/ft. – 0.03%/ft.
  • IIM to network: Up to 127 detectors
