AlarmLine™ Addressable Linear Heat Detector

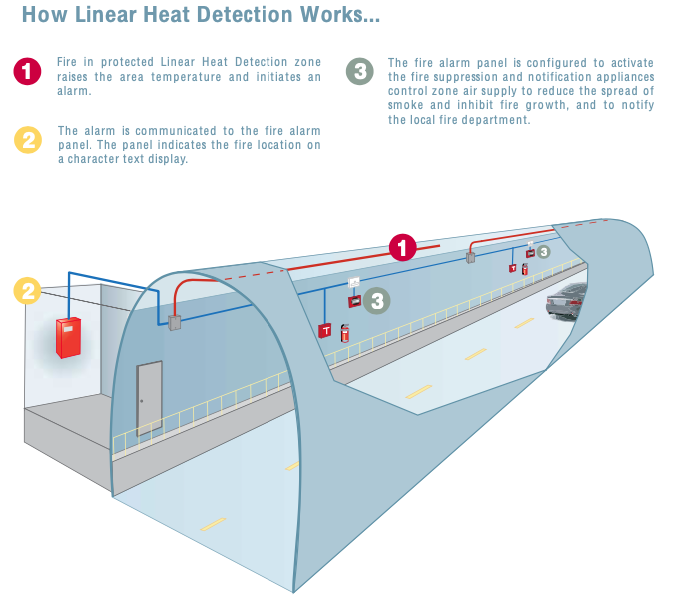

The AlarmLine Addressable Linear Heat Detector provides early detection of fire or overheat condition in protected areas or equipment. It is especially suited for confined areas or environments where adverse ambient conditions cause other detection devices to be unreliable or difficult to use. The detector consists of two major components: A sensor cable and an Addressable AlarmLine Module (AAM).





Category:

Description

DESCRIPTION

The AlarmLine Addressable Linear Heat Detector provides early detection of fire or overheat condition in protected areas or equipment. It is especially suited for confined areas or environments where adverse ambient conditions cause other detection devices to be unreliable or difficult to use. The detector consists of two major components: A sensor cable and an Addressable AlarmLine Module (AAM).

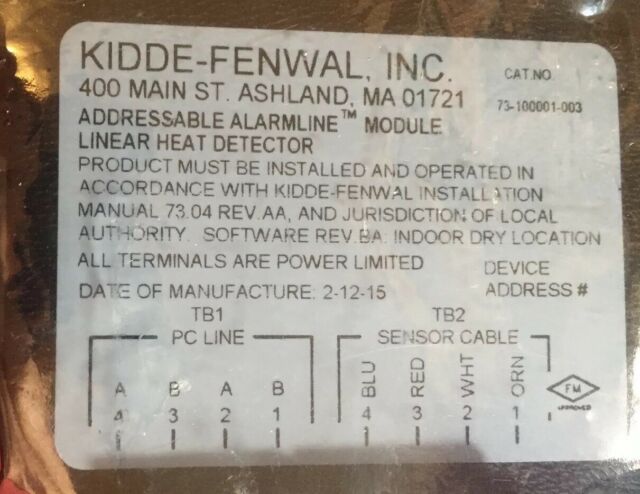

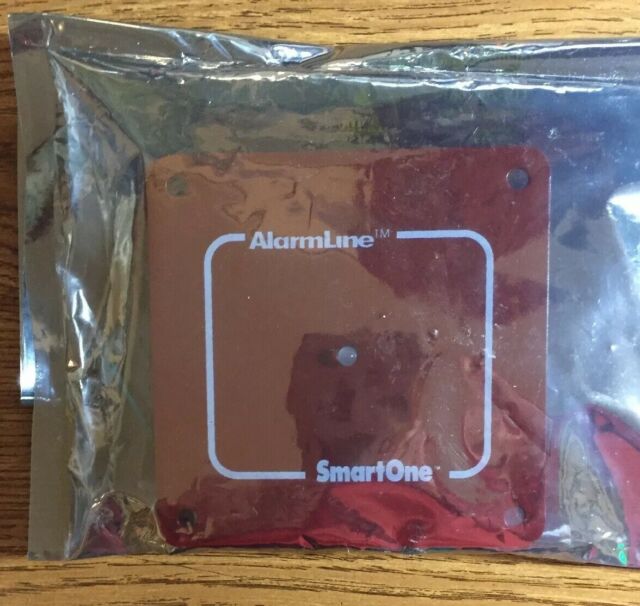

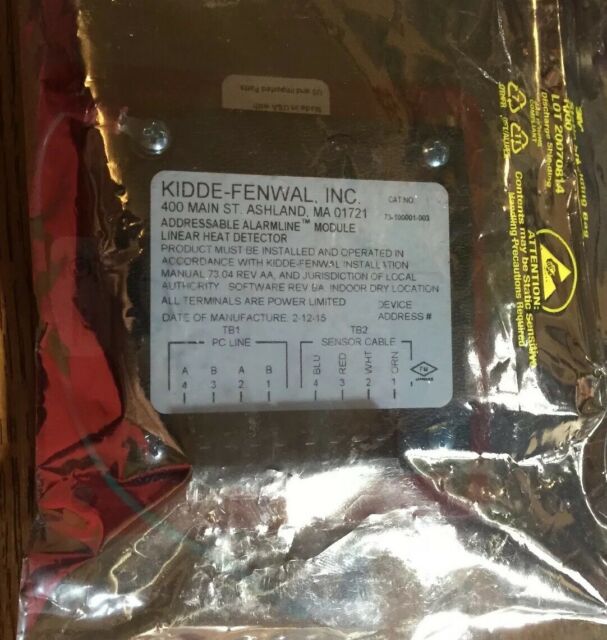

The AAM is used with any intelligent control panel that accepts SmartOne devices.



Our Quality Is Certified

Kidde Linear Heat Detection System are made in America in accordance with  ISO 9001 certified quality standards and installed and serviced by Kidde Distributors worldwid. When you have specified “Kidde”, you have chosen the world’s most respected name in fire protection.

FEATURES

  • UL Listed
  • FM Approved
  • CSFM (pending)
  • MEA (pending)
  • Low-cost interface between AlarmLineTM sensor cable and control panel accepting SmartOneTM addressable devices
  • Up to 255 Addressable AlarmLine Modules (AAM) per addressable loop
  • Real-time monitoring
  • Software adjustable alarm set point
  • Optional pre-alarm and overheat output configuration selections

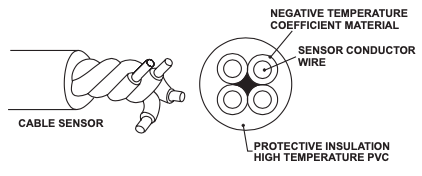

  • Three cable styles (standard, nylon, bronze braided)
  • Sensor cable restorable up to 257o F
  • Full supervision for short and open circuits
  • Two-color status-LED display for alarm and trouble conditions
  • Intrinsically safe option
  • Flexibility in zoning

APPLICATIONS

  • Open-area protection
  • Cable trays
  • Rack storage
  • Freezer warehouses
  • Belt conveyers
  • Floating roof fuel tanks
  • Cooling towers
  • Dust collectors
  • Waste fuel drum storage
  • Power distribution apparatus
  • Escalators
  • Tunnels
  • Mines
  • Hangers



BENEFITS

Application Flexibility: Allows installation at point of risk Programmable pre-alarm, alarm, and overheat levels for differing ambient conditions.

Durability: Extrusion and braiding options to satisfy environmental conditions and project risks.

Reliability: Fault signaling of open and short circuit conditions, pre-alarm, alarm, and overheat reporting.

Recoverability: Self-restoring after fire events up to 257 °F Sensitivity: Proven superiority over point-type measurement.
